VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Tampa, FL | Meridian Windows and Doors Tampa

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a minimalist frame and a multi-point locking system. It doesn’t try to be ornamental. It’s a clean, architectural front door that reads as intentional, not decorated. Meridian Windows and Doors Tampa is an authorized installation partner for ViewLux, which means we order directly, install to the manufacturer’s spec, and stand behind the result. Tampa homeowners choose this door when they want a contemporary entry that holds up to heat, humidity, and afternoon thunderstorms without warping, swelling, or sagging. Call us at (850) 821-3041 to talk through sizing and finish options.

Call (850) 821-3041

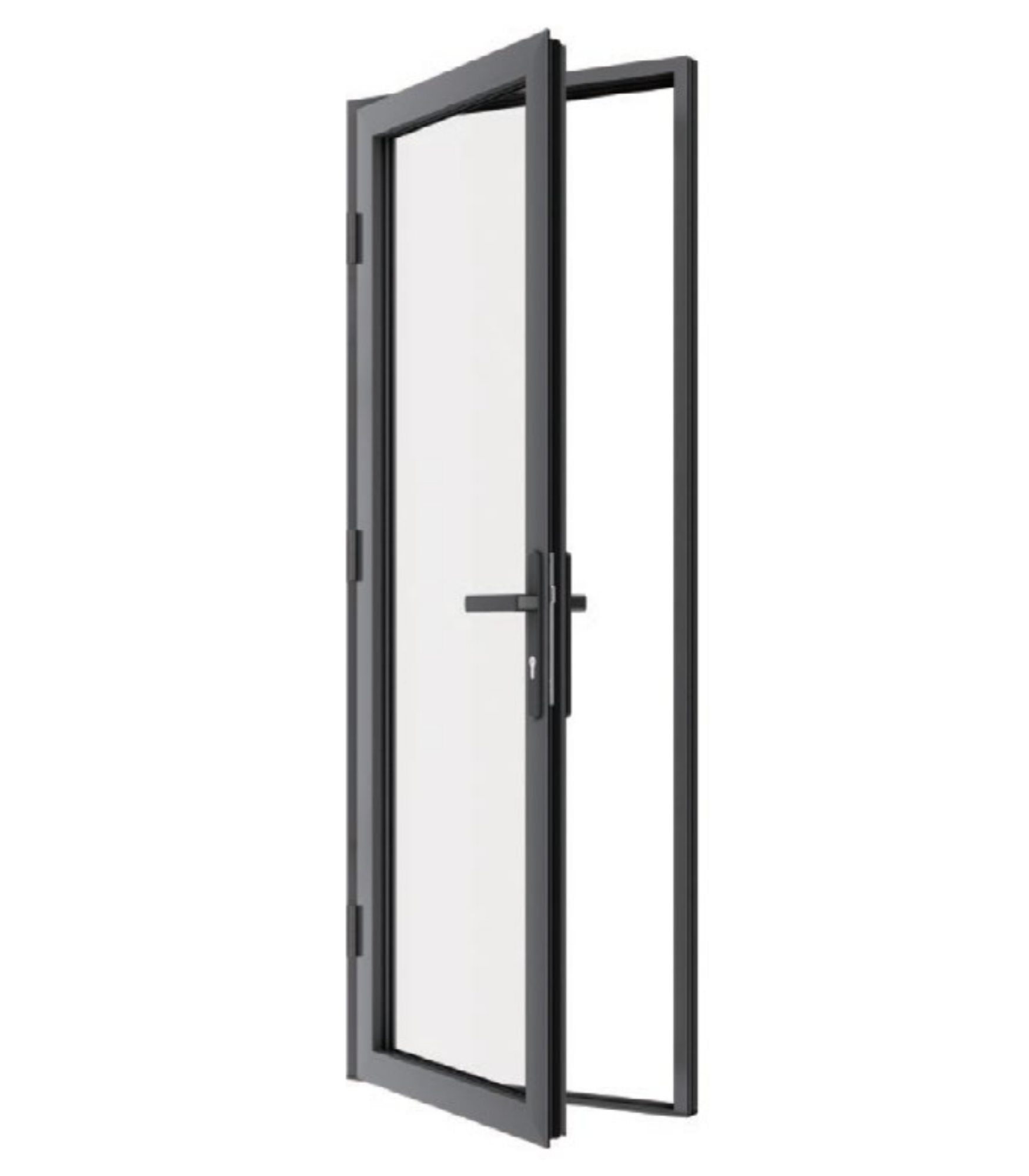

Product Overview – VLX 100 Swing / Entry Door

The VLX 100 sits in a specific place in the market. It’s not a budget steel door, and it’s not a hand-carved wood statement piece. It’s a thermally broken aluminum swing door with a profile width of 2.56 inches, which is slim enough to disappear into a modern elevation but strong enough to carry a full-height laminated glass panel. The design language is reductive: clean sightlines, narrow stiles, no unnecessary hardware. What you notice is the opening, not the frame around it.

Buyers in Tampa tend to choose this series for one of three reasons. Some are building or renovating a mid-century or contemporary home and need a door that won’t undermine the architecture. Some are replacing an old wood door that has swollen in the humidity and no longer closes cleanly. And some simply want a front entry that feels secure without looking like a fortress. The multi-point locking system answers that last concern: the door latches at multiple points along the frame, not just at a single deadbolt, which changes how the door resists forced entry and how it seals against wind pressure.

Aluminum is the right material for this climate. It doesn’t absorb moisture the way wood does, it doesn’t rust the way exposed steel can, and the thermal break keeps the interior side of the frame from turning into a heat bridge. We’ve installed enough doors in Tampa to know which materials fail here. Unbroken aluminum frames are not the answer in Florida sun. The VLX 100’s polyamide thermal break is what separates it from older aluminum systems that sweat and conduct heat.

Technical Specifications

Here’s what the VLX 100 Swing / Entry Door is built from, in plain terms:

• Wall thickness: 0.098 inches. That’s the gauge of the aluminum extrusion itself. Thin enough to keep the frame lightweight, thick enough to resist racking and torsion over years of use.
• Profile width: 2.56 inches. The visible face of the frame. Narrow enough for a minimalist look, wide enough to house the thermal break and multi-point hardware.
• Maximum span: Up to 48 inches wide for a single door leaf. Wider openings need a double-door configuration or a sidelight, which changes the conversation about hardware and framing.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated. Each serves a different purpose, from privacy to impact resistance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder-coated and anodized finishes that won’t chalk or fade the way painted wood does in Tampa’s UV.
• Screen options: Retractable screen, or none. Most of our Tampa clients skip the screen on a front entry, but it’s there for side-door or back-entry applications.

Performance Features

Thermal Efficiency

The VLX 100 uses thermal break technology, which inserts a non-conductive barrier between the exterior and interior aluminum profiles. That barrier interrupts heat transfer through the frame itself. With Low-E glass, the assembled door carries an NFRC energy rating. In Tampa, where the exterior frame can hit 140°F in direct sun, that break is the difference between a door that feels warm to the touch and one that genuinely conducts heat into your foyer.

Acoustic Performance

Laminated glass is the biggest lever for sound control. The interlayer inside laminated panels dampens vibration, which is what carries noise through glass. If your home faces a busy street, a school zone, or just a neighbor with a leaf blower habit, laminated glass in the VLX 100 makes a measurable difference. The door’s airtight perimeter seal also closes the small gaps that let mid- and high-frequency sound sneak around the edges.

Airtightness & Weather Seal

Every perimeter joint on a VLX 100 installation gets AAMA 812 low-expansion foam sealant. That’s a specific standard for sealing the rough opening, and it matters more than most homeowners realize. A door that’s square and sealed at the rough opening doesn’t just stop drafts; it stops the pressure-driven moisture that causes mold in Florida walls. The compression gaskets in the frame maintain that seal across years of opening and closing.

Waterproofing

Tampa gets roughly 50 inches of rain a year, often in short, aggressive afternoon storms that hit doors at an angle. The VLX 100’s drainage design and perimeter sealing are built for that. Water that gets past the outer gasket is channeled down and out through the frame’s weep system rather than pooling against the threshold. Proper sill installation is part of this. We slope the sill pan, seal it at the corners, and flash it so water has a defined exit path that doesn’t include your subfloor.

Wind Resistance

This door is wind-load rated for the requirements of coastal Florida construction. That’s not marketing language; it’s a structural calculation that determines how much positive and negative pressure the door assembly can take before deflection becomes a problem. For homes in Tampa neighborhoods that see hurricane-force wind events, the rated assembly matters for both code compliance and insurance. An impact-rated laminated glass option takes it one step further.

Security & Hardware

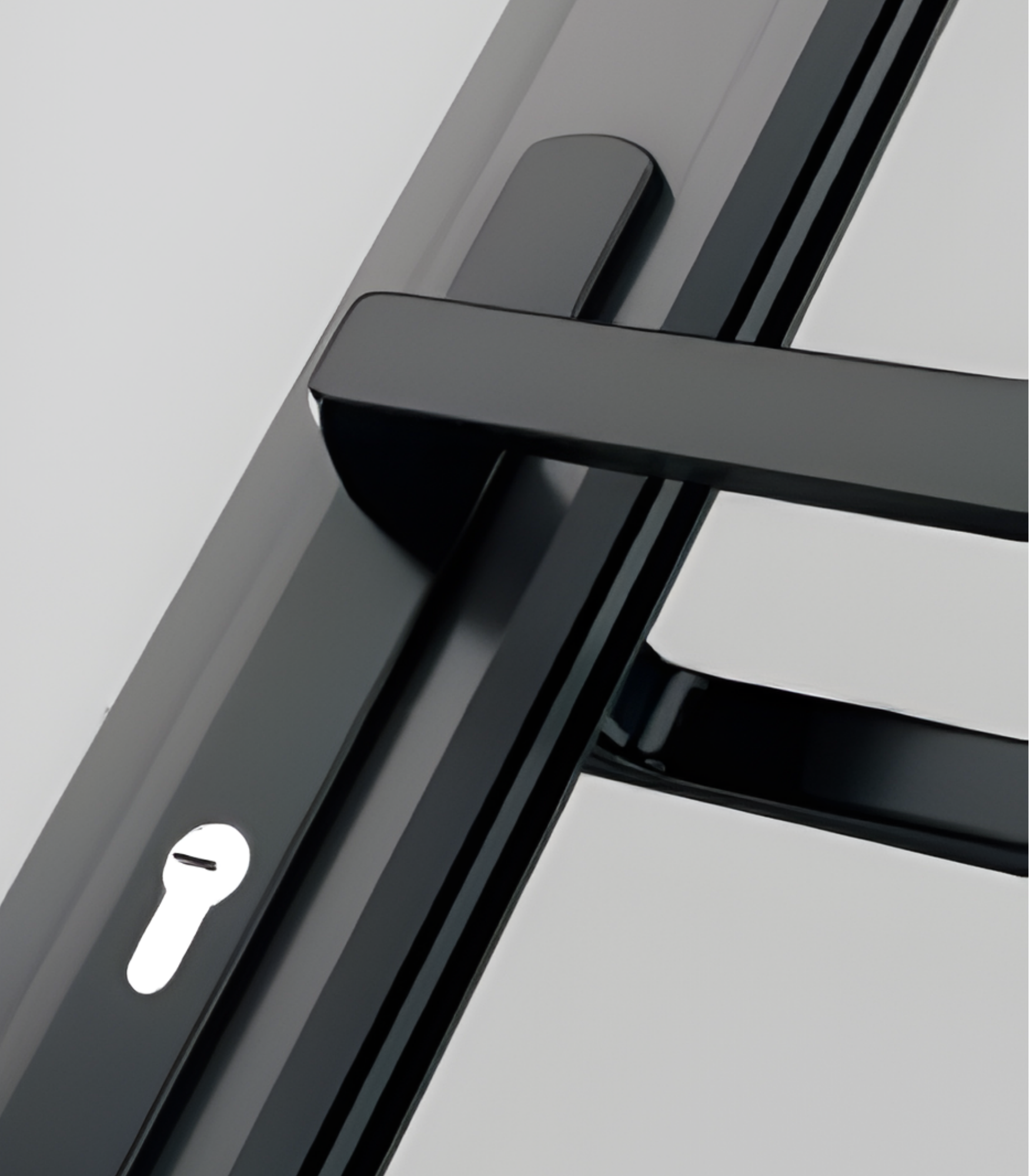

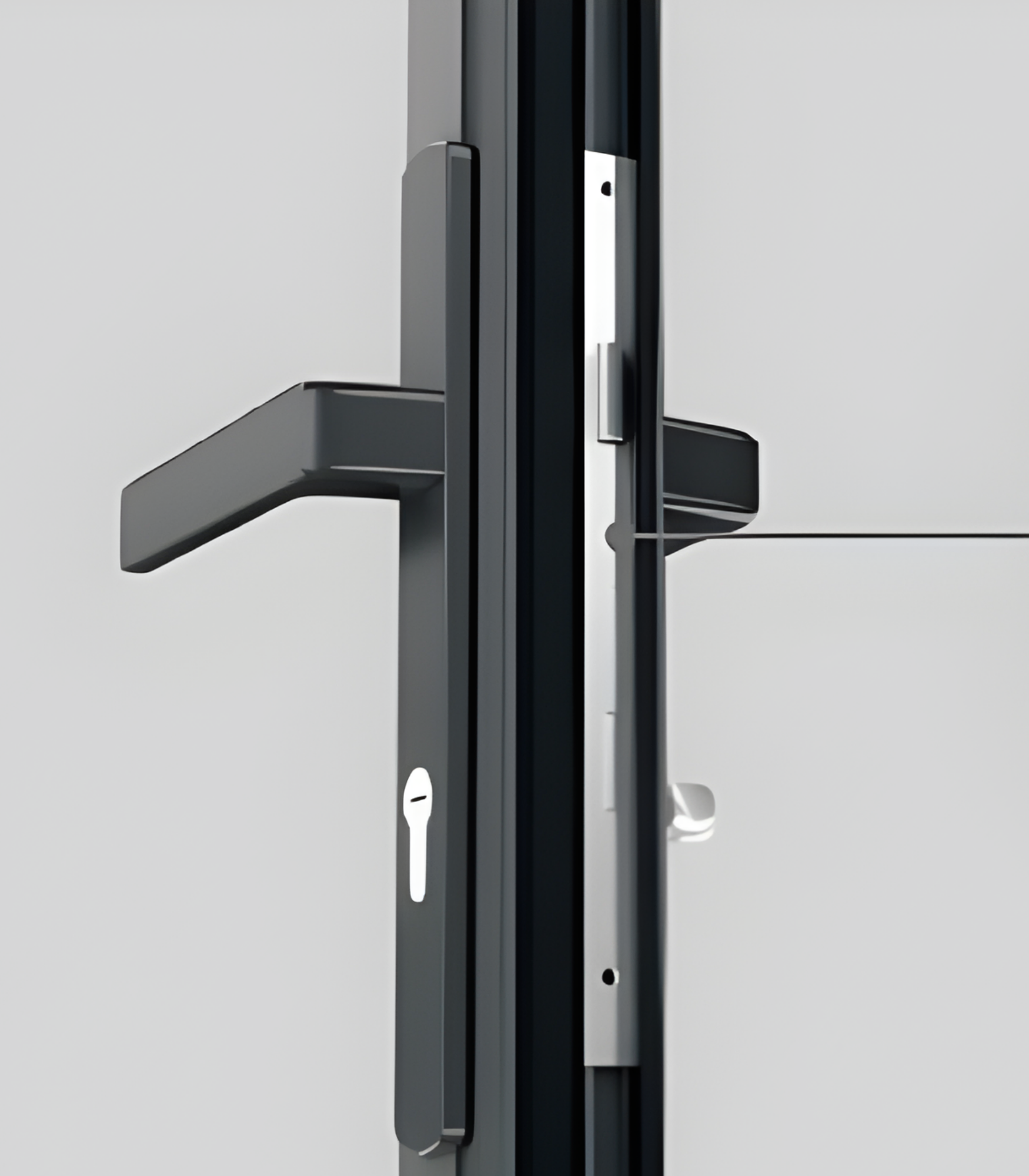

The multi-point locking system is the standout hardware feature. The door doesn’t just throw a deadbolt; it engages locking points along the full height of the frame, which distributes force and makes the door much harder to kick in. The hardware is integrated into the frame elegantly, so the lock doesn’t become a visual interruption. It’s security that reads as architecture, not as armor.

Color & Glass Options

Six finishes. Premium Black and Anodized Silver work on contemporary homes with clean, horizontal lines; the black is especially sharp against a light stucco or white brick exterior. Pure White suits coastal and Mediterranean elevations, blending the door into a bright facade rather than making it the focal point. Bronze and Champagne are warmer and more traditional, reading as almost transitional. Teak Wood is a powder-coated finish with a wood-grain texture, a good bridge for a Tampa homeowner who wants the warmth of wood without the maintenance. It weathers better than real wood in Florida humidity.

Glass is a functional choice, not just an aesthetic one. Clear glass opens up a dark entry. Frosted and Obscure options provide privacy while still passing light, useful if your door faces a street or a neighbor’s window. Low-E glass is a coating that reflects infrared heat; combined with the thermal break, it’s the best option for energy performance in a Tampa summer. Tempered glass is heat-treated to break into small, safe pieces; laminated glass adds a plastic interlayer that holds the glass together on impact. For a front door in wind-rated country, laminated is the serious choice.

Installation by Meridian Windows and Doors Tampa in Tampa

We install the VLX 100 the way the manufacturer requires, and we don’t cut corners to save time. Every installation follows AAMA 2400/2410, which is the North American standard for installation of windows and doors in exterior walls. That standard covers flashing, shimming, anchoring, and sealing, and it’s the difference between a door that looks right and a door that is right.

The process starts with a pre-installation inspection. We measure the rough opening in three places, check for plumb and square on the framing, and look for signs of water intrusion or rot in the sub-sill area. In Tampa, we see water damage around entry doors more than anywhere else; the combination of humidity, driving rain, and older construction methods means sub-sills are often compromised. We address that before the new door goes in, not after.

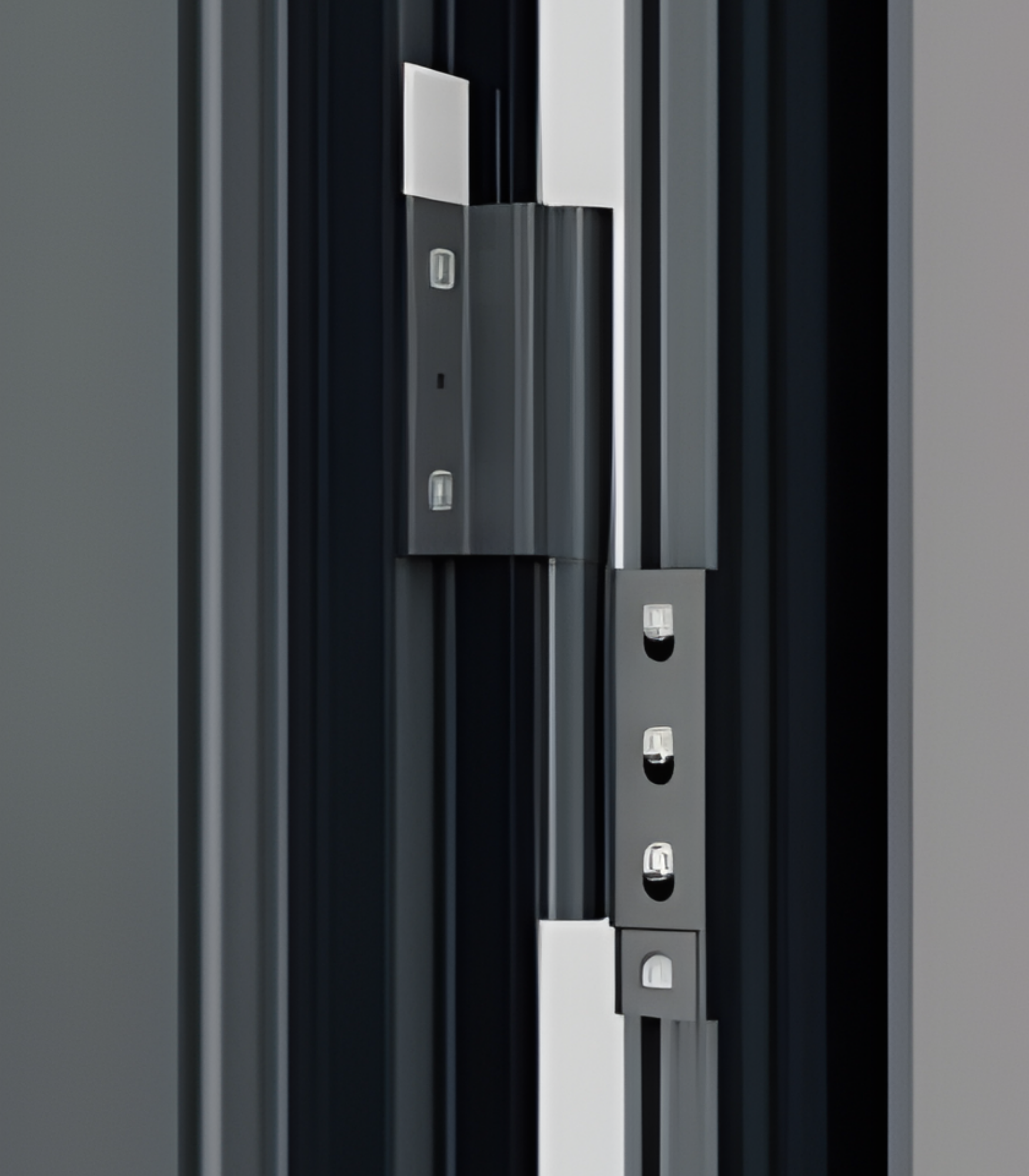

Then we set the frame. Level, plumb, square, and aligned. If the frame isn’t set right, the door will never close right, and the manufacturer warranty is void. That’s a simple fact: a perfectly manufactured door installed badly will fail, and the warranty won’t cover it. We pull the door slab off the hinges, square and anchor the frame, then re-hang the slab and tune the hinges so the reveal is consistent around all sides.

Every perimeter joint gets AAMA 812 low-expansion foam sealant. After the sealant cures, we run a water test at the sill and head to confirm drainage paths are working. We finish with interior and exterior trim, check operation at all locking points, and walk the homeowner through the hardware. Then we clean up the site, haul off the old door, and leave the entry ready to use.

Tampa-specific building code sometimes requires impact-rated glazing depending on your wind zone and distance from the coast. We’ll check your address against the current Florida Building Code requirements before we order, so you’re not surprised by a permit rejection or an insurance question later.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Tampa

If you’re considering the VLX 100 for your Tampa home, start with a conversation. We’ll ask about your opening size, glass needs, and finish preference, then give you a written line-item quote with no surprise charges later. On-site measurement is free. Call Meridian Windows and Doors Tampa at (850) 821-3041 to schedule yours.

Written by the team at Meridian Windows and Doors Tampa, serving Tampa, FL and surrounding neighborhoods with premium door and window installations since day one.
