VLX 500 Single & Double Hung Window

VLX 500 Single & Double Hung Window in Tampa, FL | Meridian Windows and Doors Tampa

The VLX 500 Single & Double Hung Window is a classic vertical-glide aluminum window built for Tampa homes that face real heat, real humidity, and real hurricane season. It’s the window homeowners choose when they want the clean lines of aluminum without sacrificing everyday usability. Single hung means the bottom sash moves. Double hung means both sashes move, top and bottom, which gives you better airflow in a climate where cross-breezes matter. Meridian Windows and Doors Tampa is an authorized ViewLux installation partner serving Tampa, FL and surrounding neighborhoods like Seminole Heights, Westchase, Carrollwood, and Hyde Park. That means you get a factory-matched product installed by a crew that follows AAMA installation standards to the letter. Call (850) 821-3041 to talk specs, pricing, or scheduling.

Call (850) 821-3041

Product Overview – VLX 500 Single & Double Hung Window

Hung windows remain the most common window style in Florida homes for good reason. They fit almost any architectural language: a 1920s Craftsman bungalow in Tampa Heights, a 1960s ranch in Forest Hills, a modern coastal build in South Tampa. The VLX 500 keeps that familiar look but builds it with aluminum, which means the frame won’t rot, warp, or swell when Florida’s humidity settles in for six months straight. The design is simple: sashes slide vertically within the frame. What makes this series stand out is that both sashes tilt inward. That tilt-in feature means you can clean both sides of the glass from inside your house. If you live in a two-story home in New Tampa, that matters. You should not need a ladder to wash your windows.

The frame uses a 0.079-inch wall thickness and a profile width of 2.36 inches. That gives the window real structural rigidity without looking bulky. Slim sightlines are a big reason people choose aluminum over vinyl. You get more glass, more light, and a cleaner profile from the street. The VLX 500 is not a budget window, but it is priced for homeowners who understand that aluminum windows in Florida are a 20-to-30-year purchase, not a five-year one. Meridian Windows and Doors Tampa has installed these across Tampa, FL and we consistently hear one thing from customers after the first summer: their air conditioner runs less.

Technical Specifications

Here is what you are actually buying when you order the VLX 500 in Tampa, FL. These numbers are not marketing fluff. They come straight from the cut sheet.

• Frame material: Extruded aluminum, thermally broken
• Wall thickness: 0.079 inches
• Profile width: 2.36 inches
• Operation: Single hung (bottom sash moves) or double hung (both sashes move)
• Cleaning: Tilt-in sashes on both configurations
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated (impact-rated)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Half-screen or full screen
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealant standard

Every window is fabricated to your opening dimensions. We do not believe in “close enough” sizing. In Tampa, FL, where afternoon thunderstorms drive rain against windows at 40 miles per hour, a sixteenth of an inch in the opening is the difference between a dry wall and a callback.

Performance Features

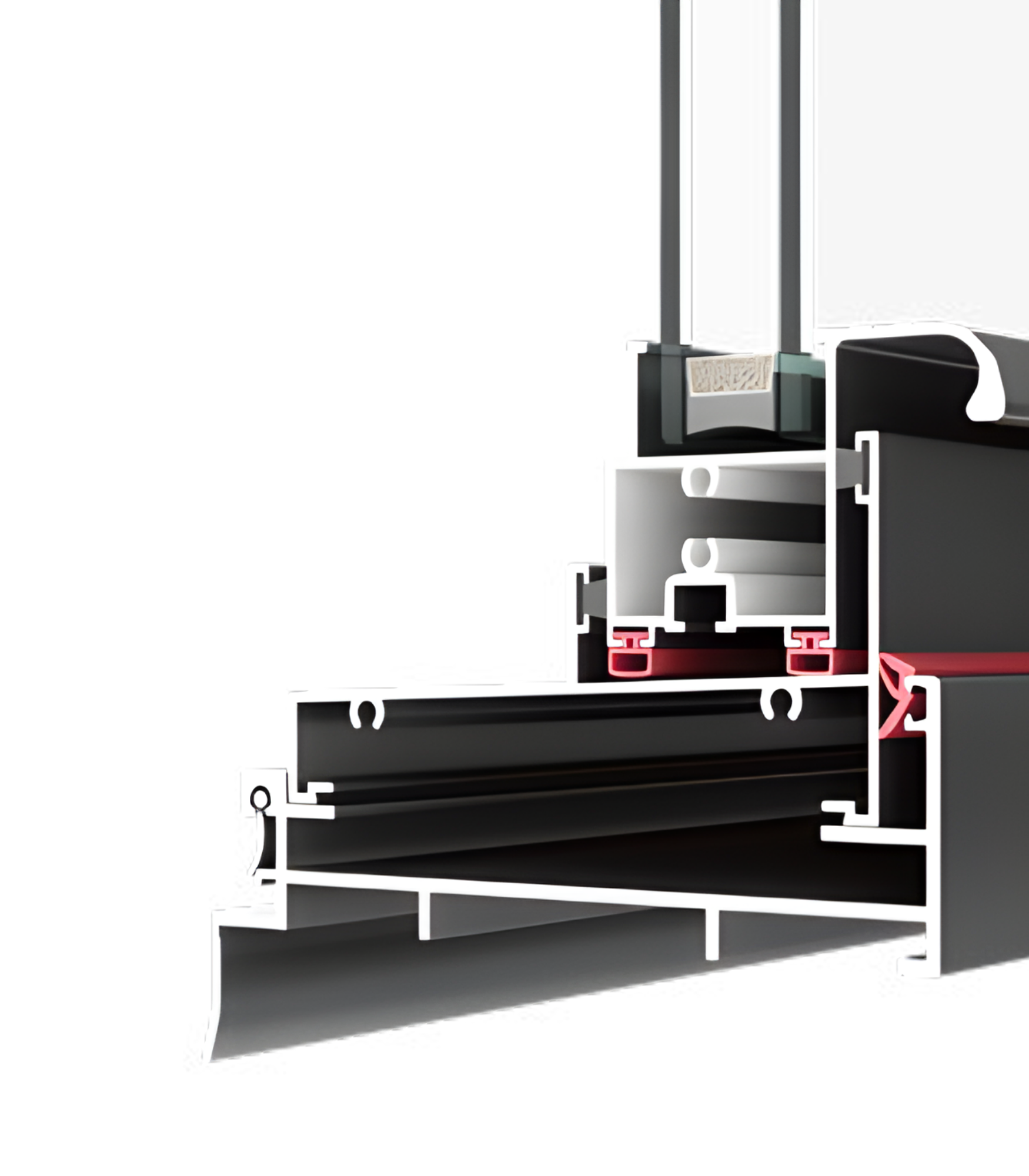

Thermal Efficiency – The VLX 500 uses a thermal break inside the aluminum frame. That break stops heat from conducting through the metal. Aluminum without a thermal break is a radiator. With it, the window earns NFRC ratings that hold up against Tampa’s August sun. Pair it with Low-E glass and you will feel the difference on the west-facing wall of your house in Westchase.

Acoustic Performance – Hung windows seal well, and the VLX 500 includes weatherstripping that reduces outside noise. If you live near Dale Mabry Highway, I-275, or the flight path into Tampa International, laminated glass takes sound control another step further. We have installed laminated-glazed VLX 500s in South Tampa homes where the homeowner genuinely noticed the quiet the first night.

Airtightness & Weather Seal – The sashes seat into interlocking weatherstripping rails. That barrier is what keeps conditioned air inside and humid outside air where it belongs. Air leakage is a real performance metric, not just a comfort feature. In Tampa, FL, where every summer day pushes 90% humidity, a leaky window frame shows up as mildew on the sill before you ever see it on an energy bill.

Waterproofing – We install every VLX 500 with AAMA 812 low-expansion foam sealant around the full perimeter of the rough opening. No gaps, no skipped sections, no caulk-and-pray. That sealant, combined with the window’s internal weep system, directs water down and out. Improperly sealed window openings are the number-one source of water intrusion we see on retrofit jobs around Tampa.

Wind Resistance – The VLX 500 is wind-load rated for local climate requirements, which in Hillsborough County means it is engineered for real pressure. Florida building code does not play games with window ratings. We verify the design pressure rating on every opening before we order. If you need impact resistance, choose the laminated glass option. That glass is built to take a flying branch in a named storm without shattering into your living room.

Security & Hardware – Hung windows get a bad reputation for security because older designs could be jimmied. The VLX 500 uses a cam-action lock and a keeper that engages solidly. The vents keep the window from being opened more than a few inches from outside. Aluminum frames do not flex the way vinyl does, so the hardware stays aligned for years. That is a detail you notice after year three, not on day one.

Color & Glass Options

The VLX 500 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black and Pure White are overwhelming favorites in modern and contemporary builds around Tampa, FL. They give a crisp, architectural edge to a boxy block home in Seminole Heights. Bronze and Champagne are warmer, and they sit nicely on traditional homes with brick or stucco elevations in Hyde Park or Davis Islands. Teak Wood is a specialty finish that mimics wood tone at a distance, which can satisfy HOA requirements in neighborhoods like Westchase where architectural review boards can be strict. Anodized Silver is the classic commercial look, and it holds up well on mid-century homes.

Glass selection changes how the window behaves. Clear glass is the budget baseline. Frosted glass gives privacy for bathrooms or street-facing windows without losing light. Low-E glass has a coating that reflects heat outward, which is the single highest-performance upgrade you can make for a Tampa home. Tempered glass meets safety glazing code for windows near doors or low to the floor. Laminated glass is two panes bonded to a plastic interlayer; it is the impact-rated option, and it also knocks down sound better than anything else in the lineup.

Installation by Meridian Windows and Doors Tampa in Tampa

Here is the uncomfortable truth about window replacement: the best window on the market will fail if it is installed wrong. Manufacturer warranties cover defects in the window, not mistakes made by the installer. A frame that is not level, plumb, and square will bind. A perimeter that is not sealed with AAMA 812 foam will leak. A head flashing that is skipped will rot the rough opening. None of that is covered by ViewLux’s warranty. This is why we are meticulous.

Every installation starts with a pre-install inspection. We open the drywall returns, check the rough opening for rot or termite damage, and measure to the sixteenth. If the opening is compromised, we stop and tell you before we order anything. We do not frame over rot in Tampa, FL, because rot spreads and a new window over a bad opening is a five-year failure waiting to happen.

The install itself follows AAMA 2400/2410 installation standards. We set the frame level, plumb, and square. We shim at the load points, not the corners. We seal the entire perimeter joint with AAMA 812 low-expansion foam, top to bottom, side to side. We install flashings at the head and protect the sill pan. Then we test. We run water across every installation before we call it done. We clean the interior, haul away the old window and debris, and walk you through the operation and locking hardware. The whole process in Tampa typically takes 45 to 90 minutes per opening, depending on what we find in the wall.

Tampa-specific conditions matter here. Our window openings see more thermal movement than most of the country because of the heat-humidity cycle. Our afternoon storms punish bad flashing. Our homes in neighborhoods like Palma Ceia and Beach Park lean on original rough openings that may have settled over 60 years. A crew that only knows new construction will not adapt. We do.

Frequently Asked Questions – VLX 500 Single & Double Hung Window

What is the lead time for the VLX 500 Single & Double Hung Window?

Lead time for VLX 500 windows in Tampa, FL typically runs 3 to 5 weeks from final measurement to delivery at our shop, depending on the glass package and finish you select. Custom finishes like Teak Wood and laminated glass add time. Call (850) 821-3041 and we can give you a current production window before you commit.

Does the VLX 500 qualify for energy tax credits?

It can. The VLX 500 with Low-E glass and a thermally broken frame meets the energy performance thresholds that qualify for the federal energy efficient home improvement credit in many cases. Eligibility depends on your specific glass selection and your home’s location. We recommend confirming your exact configuration with a tax professional. We’ll give you the NFRC label and the manufacturer’s certification statement so you have the paperwork.

What warranty comes with the Single & Double Hung Window?

The VLX 500 carries a ViewLux manufacturer warranty that covers the frame, glass, and hardware against defects. The coverage period depends on the finish and glass package you choose. Meridian Windows and Doors Tampa installs strictly to AAMA 2400/2410 standards so your workmanship warranty stays intact. We are the single point of contact if anything ever goes wrong. Call (850) 821-3041 and ask us for the full warranty document before you buy.

Can I customize the size?

Yes. The VLX 500 is fabricated to your exact rough opening dimensions. We are not working with stock sizes at Meridian Windows and Doors Tampa. We measure every opening individually because Tampa homes, especially older ones in Seminole Heights and Tampa Heights, rarely have square openings. You get a window made for your house, not a window your house has to be made to fit.

How do I maintain aluminum frames?

Aluminum frames need almost nothing. Wash the frame with mild soap and water two or three times a year. Check the weep holes along the bottom track, because if they clog with Tampa pollen or debris, water backs up and runs inside. Lubricate the tilt latches and the balance hardware once a year with a dry silicone spray. Do not use petroleum-based lubricants; they attract dust and gum up the mechanism. That is the whole maintenance routine.

Get a Quote – VLX 500 Single & Double Hung Window in Tampa

You have the specs. You have the performance story. Now you need a number for your specific windows, your specific openings, and your specific Tampa, FL home. We will measure, price line by line, and tell you exactly what each window costs with no volume-pricing games and no surprise change orders. Call (850) 821-3041 to schedule a free on-site measurement and walkthrough.

Written by the team at Meridian Windows and Doors Tampa, serving Tampa, FL with authorized ViewLux window and door installations.
