VLX 100 Pivot Door

VLX 100 Pivot Door in Tampa, FL | Meridian Windows and Doors Tampa

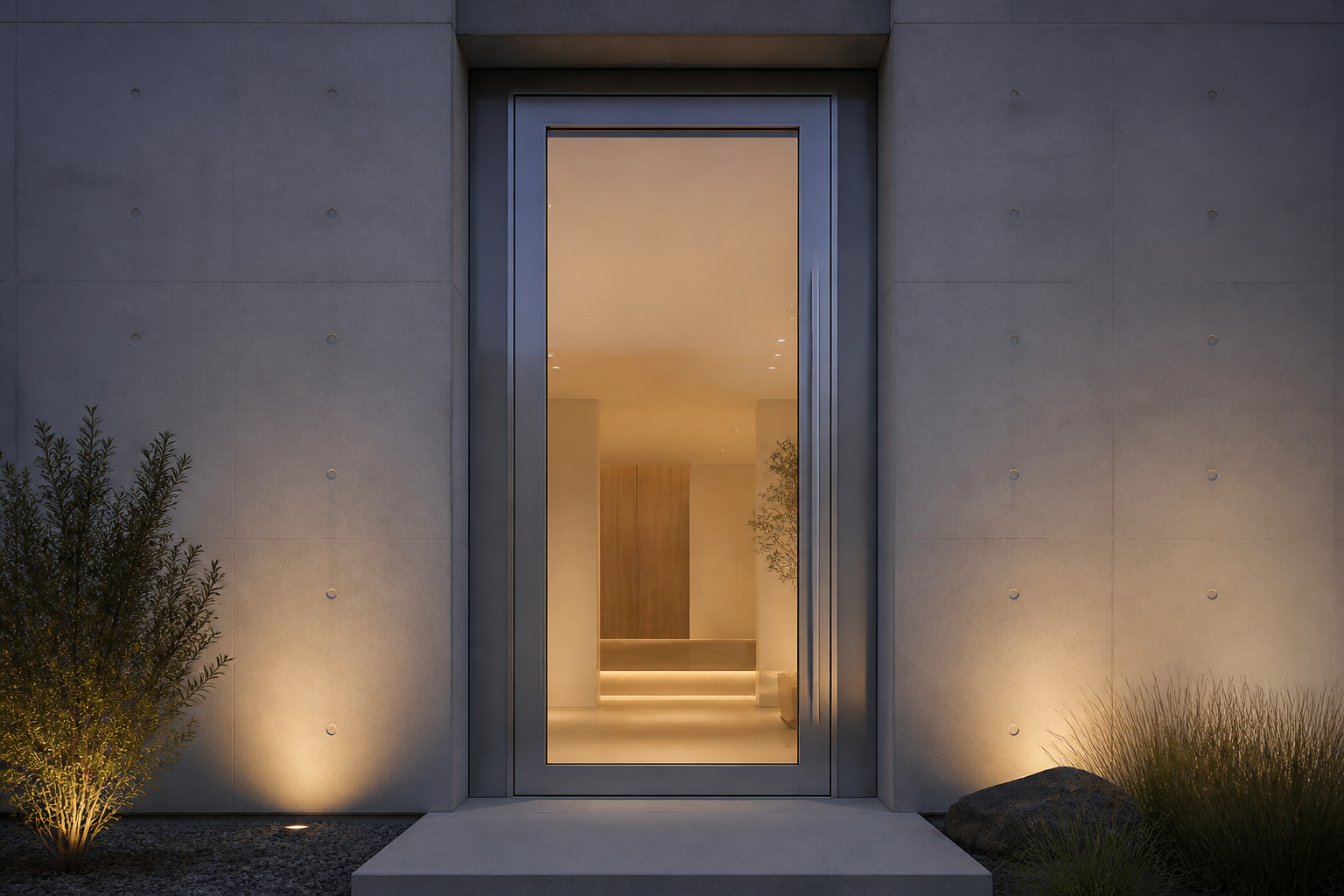

The VLX 100 pivot door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. It delivers oversized glass panels and a clean architectural profile that transforms a front entry into the focal point of the home. Meridian Windows and Doors Tampa is an authorized ViewLux installation partner serving Tampa, FL, which means you get factory-backed product support plus local installation expertise under one roof. If you’re planning a modern build in Hyde Park, a waterfront renovation on Davis Islands, or a custom home in South Tampa, this door deserves a serious look. Call (850) 821-3041 to talk through your project.

Call (850) 821-3041

Product Overview – VLX 100 Pivot Door

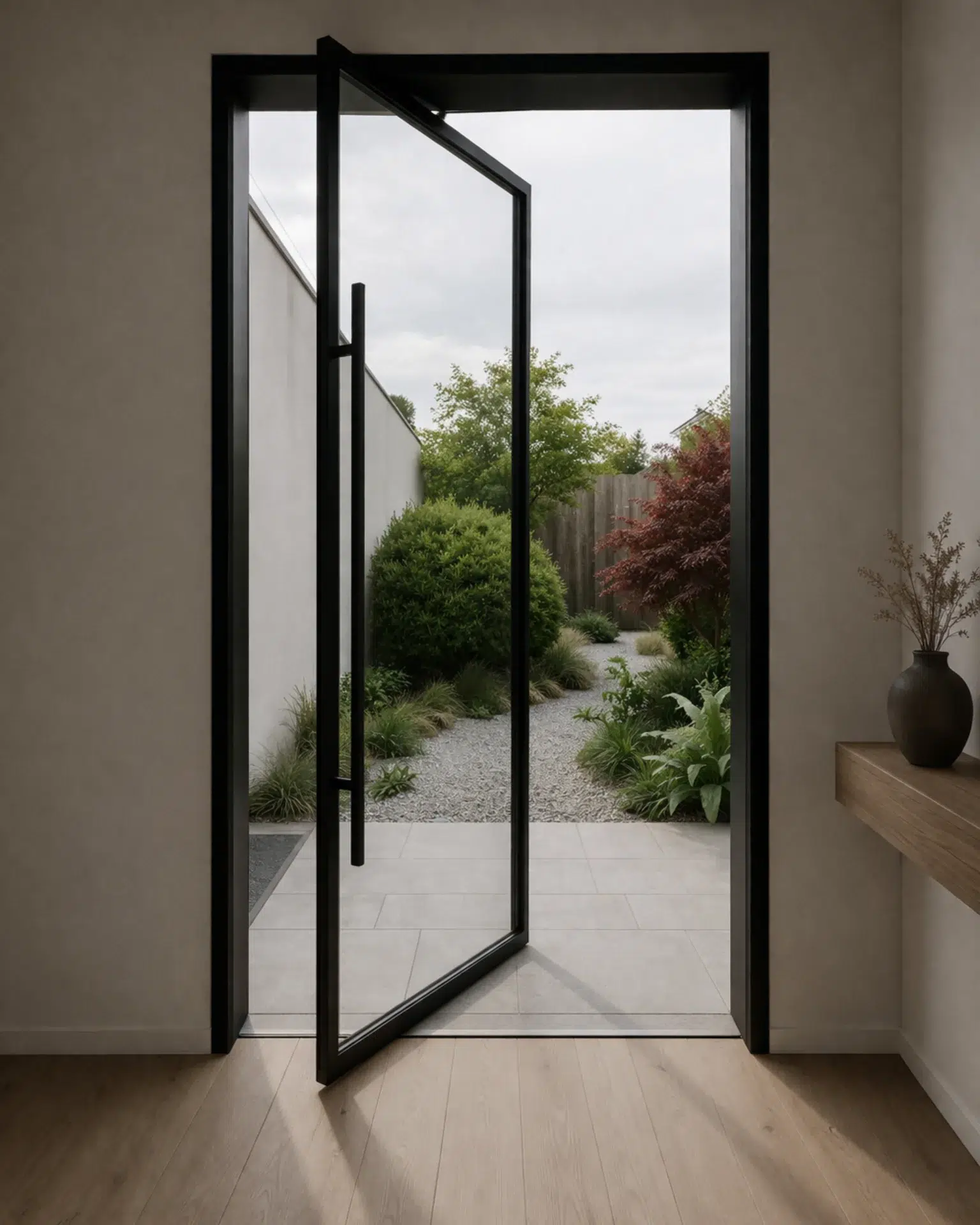

The VLX 100 is built around a simple idea: a door should be an architectural statement, not an afterthought. Instead of relying on conventional side-mounted hinges, the panel rotates on a pivot point set into the floor and header. That single change unlocks dimensions and proportions that a standard hinged door simply cannot handle. We’re talking about panels up to 60 inches wide and 120 inches tall, with glass stretching nearly edge to edge.

The frame is extruded aluminum with a profile width of 2.56 inches and a wall thickness of 0.098 inches. Those numbers matter because they determine how the door behaves over decades of Tampa heat, humidity, and storm cycles. A thicker wall means less flex, less warping, and a tighter seal year after year. The pivot hardware carries the weight across the full height of the panel rather than concentrating stress at two or three hinge points, which is why this system can support glass panels that would overwhelm a traditional door.

Buyers choose the VLX 100 when they want a grand entry, a dramatic sightline from the foyer to the backyard, or a contemporary front door that reads more like a glass wall. It fits custom homes in Beach Park, modern infill builds in Seminole Heights, and high-end condo renovations along Bayshore Boulevard. The product is manufactured by ViewLux, and Meridian Windows and Doors Tampa handles specification, ordering, and installation as an authorized partner. That relationship means direct access to factory technical support and no gray-market product concerns.

Technical Specifications

Here’s what the VLX 100 brings to the table, in plain numbers and plain language. If you need a size or configuration that isn’t listed below, call us. Custom dimensions are available within the panel’s structural limits.

• Frame material: Heavy-duty extruded aluminum, wall thickness 0.098 inches
• Profile width: 2.56 inches
• Maximum panel span: 60 inches wide by 120 inches tall
• Pivot mechanism: Vertical center axis, floor and header mounted
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Performance: NFRC-rated thermal break, AAMA 2400/2410 compliant installation, AAMA 812 low-expansion foam perimeter seal
• Climate rating: Wind-load rated for Tampa and Hillsborough County requirements
• Impact option: Laminated impact-resistant glass available

The maximum span figure is the headline number for architects and builders, but the profile width and wall thickness are what keep that span stable through years of operation. A pivot door is only as good as the frame holding it square.

Performance Features

Thermal Efficiency – The VLX 100 frame includes a thermal break that separates the interior and exterior aluminum faces. That break interrupts heat transfer, which keeps your air conditioning inside during a Tampa August and keeps the frame from sweating when the humidity spikes. NFRC-rated performance means the numbers are independently verified, not marketing claims.

Acoustic Performance – Laminated glass paired with the sealed aluminum frame cuts exterior noise meaningfully. If you live near Dale Mabry, the Selmon Expressway, or Tampa International flight paths, the difference between a builder-grade door and the VLX 100 is noticeable the first week you live with it.

Airtightness & Weather Seal – Every perimeter joint gets AAMA 812 low-expansion foam sealant during installation. That foam fills micro-gaps that caulk misses, which means no drafts, no dust intrusion, and no conditioned air leaking out around the frame. Airtightness isn’t a luxury in Florida’s climate; it’s a utility bill line item.

Waterproofing – Tampa gets roughly 50 inches of rain a year, much of it wind-driven and horizontal during summer storms. The VLX 100’s sill design and perimeter sealing system route water away from the threshold and down the exterior face of the building. Proper flashing and sealant work during installation determines whether that engineering performs as designed.

Wind Resistance – The frame is wind-load rated for local code requirements, and the pivot hardware distributes wind pressure across the full panel height. For homes in mandatory wind-borne debris zones, the laminated impact-resistant glass option is the right call. It holds together under impact instead of shattering into the living room.

Security & Hardware – The pivot mechanism itself is a security feature. The door engages the frame at top and bottom rather than just along the latch side, which makes forced entry substantially harder than a conventional hinged door. Multi-point locking hardware is available, and the aluminum frame doesn’t flex enough to pop a latch with a pry bar.

Color & Glass Options

The VLX 100 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black and Anodized Silver read as aggressively modern, which suits the clean-line architecture we’re seeing across Tampa’s newer builds in Westshore and the Channel District. Bronze and Champagne carry a warmer, more traditional weight, which works well on Mediterranean-inspired homes in Palma Ceia or Golf View. Teak Wood brings an organic warmth that pairs beautifully with mid-century and coastal modern designs, especially on waterfront properties in St. Petersburg and Tampa’s bayfront neighborhoods.

Glass selection depends on what you want the door to do. Clear glass maximizes the view and daylight, provided privacy isn’t a concern. Frosted and Obscure glass give you light without sightlines, which is a smart choice for front entries that face the street. Low-E glass improves energy performance by rejecting solar heat, a real consideration for west-facing entries in Florida’s afternoon sun. Tempered glass is safety-rated and required for doors by code. Laminated glass combines impact resistance with sound control, and it’s the option we recommend for any Tampa home in a wind-borne debris zone.

Installation by Meridian Windows and Doors Tampa in Tampa

We install every VLX 100 pivot door to AAMA 2400/2410 standards, which is the recognized installation guideline for fenestration products. That’s not a marketing phrase. It means the opening gets measured and inspected before the door is ordered, the rough opening gets corrected if it’s out of tolerance, and the frame gets set level, plumb, and square before any fastener is driven.

The process starts with a pre-install inspection at your Tampa home. We check the opening dimensions against the ordered panel, verify the floor structure can handle the pivot load, and confirm the header is properly supported. Then we set the frame, shim it to within tolerance, and lock it down. Every perimeter joint gets AAMA 812 low-expansion foam sealant, followed by exterior-grade sealant at the sill and head. We run a final water test to confirm the threshold drains properly, then clean the glass and hand you the operation walkthrough.

Here’s the part most people don’t think about until it’s too late: a pivot door is only factory-warranted if it’s installed correctly. ViewLux’s warranty terms, like every serious manufacturer’s, exclude damage caused by improper installation. A door set out of square will bind at the pivot, stress the glass, and eventually fail. Tampa’s climate amplifies every installation error, because thermal expansion and humidity cycles are constant here, year-round. When Meridian Windows and Doors Tampa installs the door, the warranty stays intact and the door operates like it should. We’re an authorized ViewLux partner in Tampa, FL, and we’ve built our local reputation on installs that hold up.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Tampa

If you’re building or renovating in Tampa and want a VLX 100 pivot door on your entry, let’s talk numbers. We’ll measure your opening, confirm the size and glass package, and give you a written quote with no pressure and no surprises. Call (850) 821-3041 to schedule your free on-site measurement and project consultation.

Written by the team at Meridian Windows and Doors Tampa, authorized ViewLux installation partner serving Tampa, FL and the greater Tampa Bay area.
