VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Tampa, FL | Meridian Windows and Doors Tampa

The VLX 150 is the sliding door Tampa homeowners choose when standard patio sliders won’t cut it. It’s engineered for openings up to 24 feet wide, built around a beefy aluminum frame with a 0.118-inch wall thickness and stainless steel roller hardware that glides without sagging or binding. Meridian Windows and Doors Tampa is an authorized ViewLux installation partner, which means you get factory-backed performance and a Tampa-based crew that installs it to AAMA standards. If you’re planning a wide-opening great room, a waterfront condo upgrade, or a replacement door that has to survive Florida sun and storm season, call us at (850) 821-3041 and we’ll walk you through the details and pricing.

Call (850) 821-3041

Product Overview – VLX 150 Heavy-Duty Sliding Door

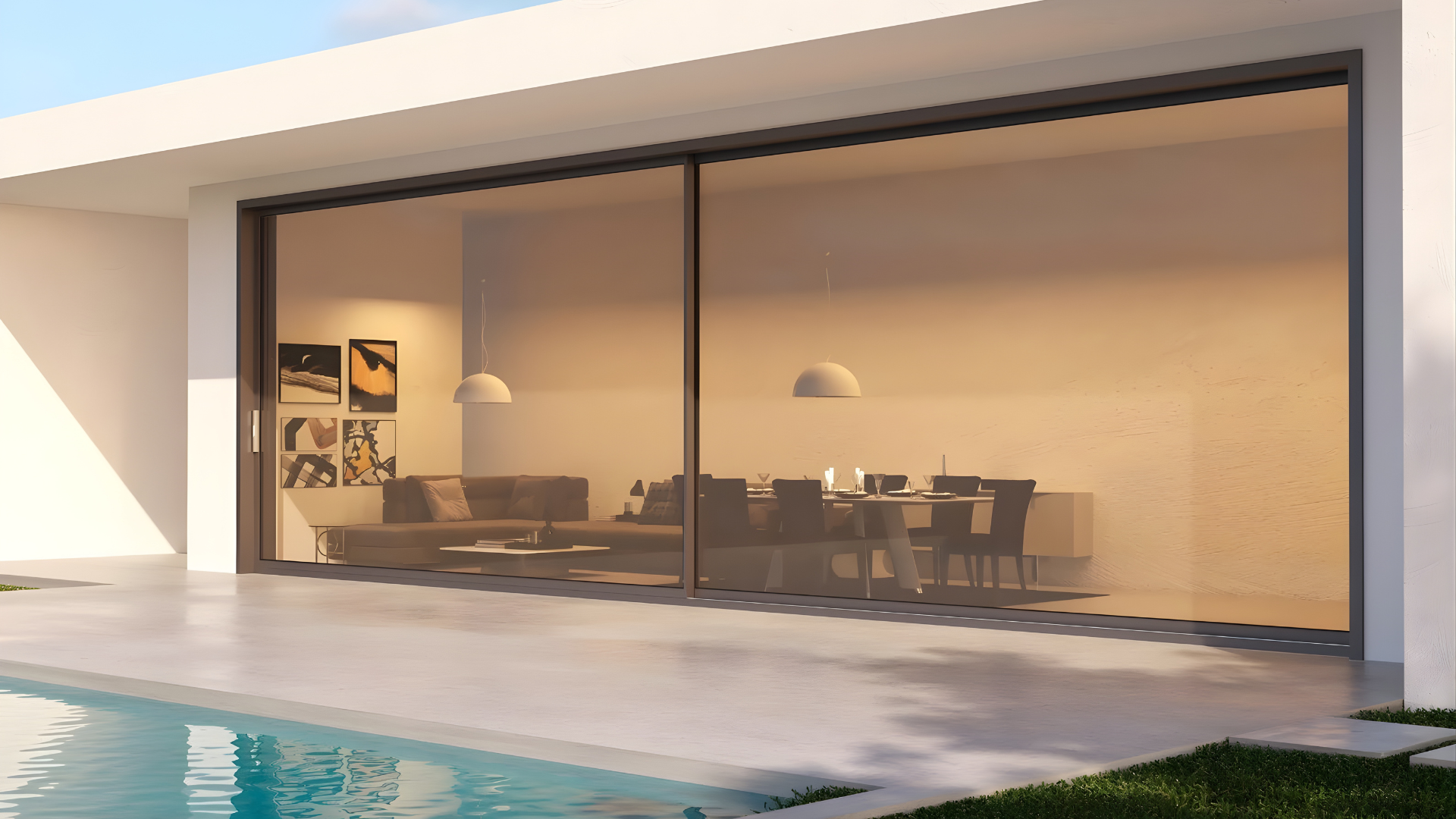

The VLX 150 was designed around one idea: span. Most aluminum sliders start to feel flimsy past 10 or 12 feet. The VLX 150 carries up to 24 feet of glass on a frame that holds its line, thanks to a 2.95-inch profile depth and wall thickness of 0.118 inches. That’s a serious piece of extruded aluminum, and it’s one reason architects and builders spec this series for Tampa projects where the door is the focal point of the room.

This is a strength-focused, large-span aluminum slider. The roller system uses stainless steel hardware throughout, which matters more in Tampa than it does inland. Salt air off the bay, humidity, and afternoon thunderstorms chew through plated rollers in a few years. Stainless holds up. The multi-track configuration options (2-track, 3-track, and 4-track) let you design openings that stack panels cleanly to one side, opening up 65% or more of the total span depending on configuration.

Who buys this door? Homeowners replacing a worn-out slider with something that won’t flex in a storm. Builders doing modern custom homes in Beach Park, Davis Islands, or Hyde Park where wide glass walls are expected. Condo owners in Channelside and downtown Tampa who need an impact-rated solution without giving up the view. Meridian Windows and Doors Tampa handles the full install, so the door performs the way ViewLux designed it to.

Technical Specifications

Here’s what the VLX 150 brings to the table, laid out plainly:

• Frame wall thickness: 0.118 inches of extruded aluminum, heavier than typical residential sliders.
• Profile depth: 2.95 inches, which gives the frame structural stiffness across long spans.
• Maximum span: Up to 24 feet wide, depending on panel count and configuration.

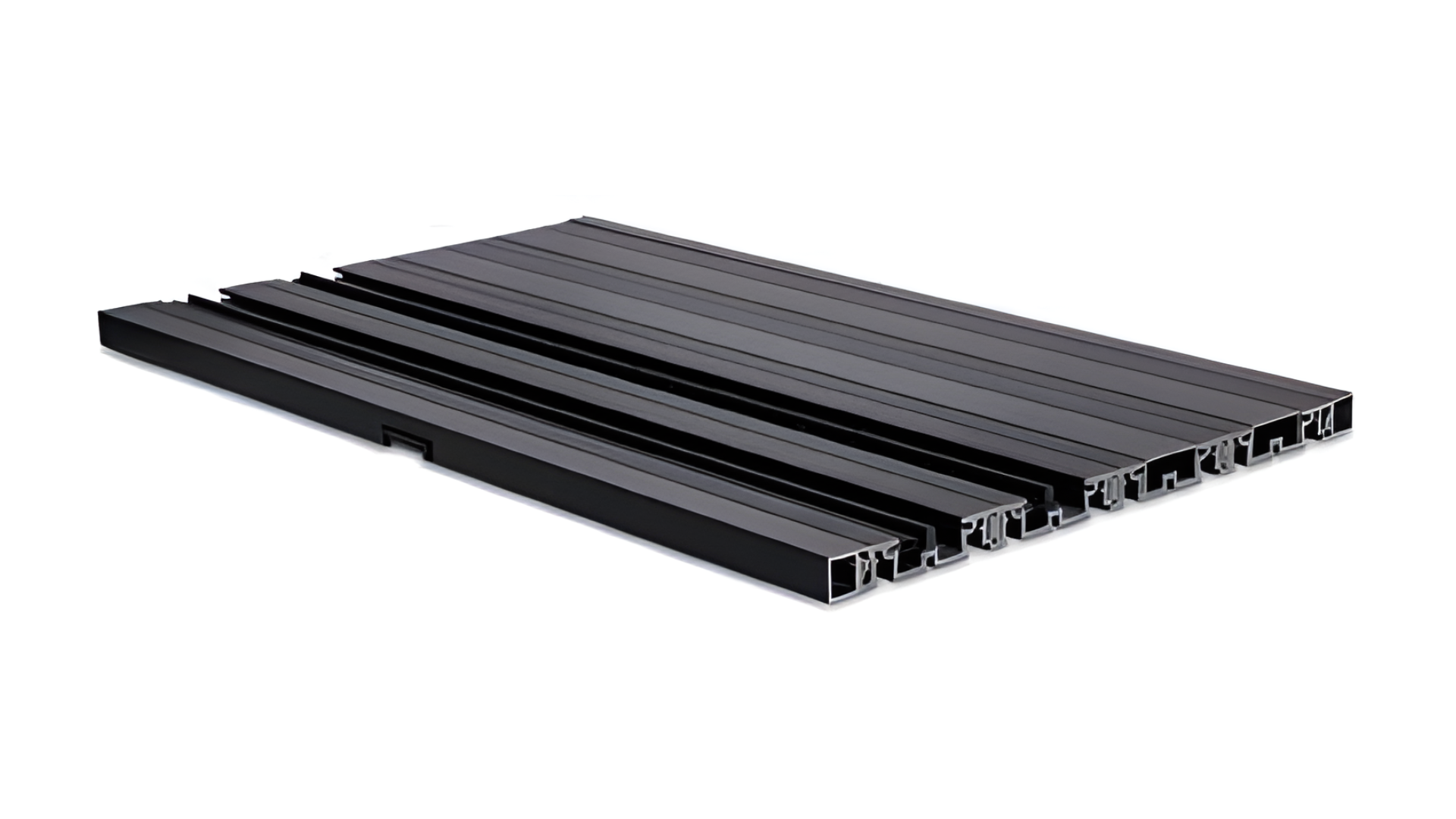

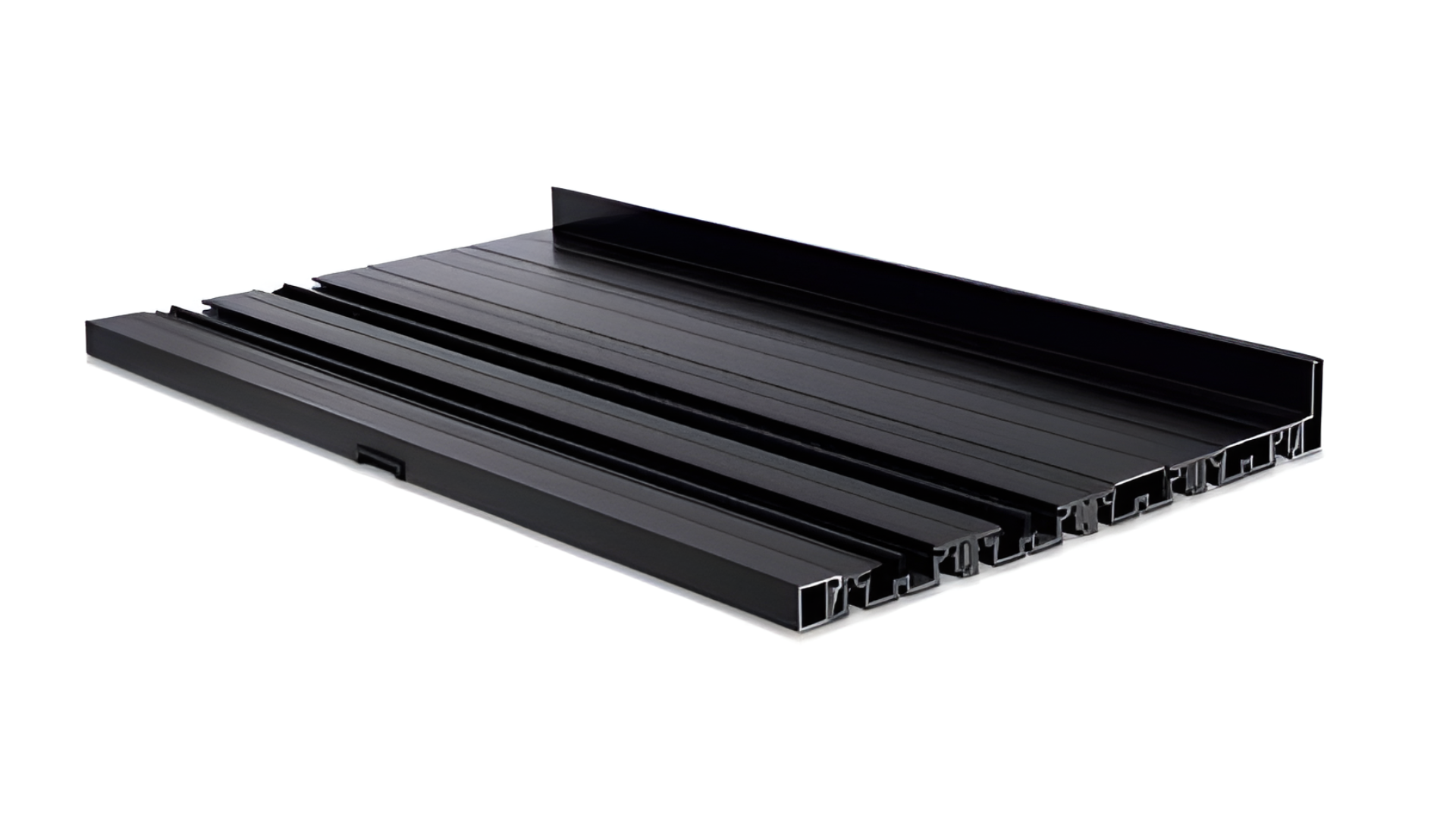

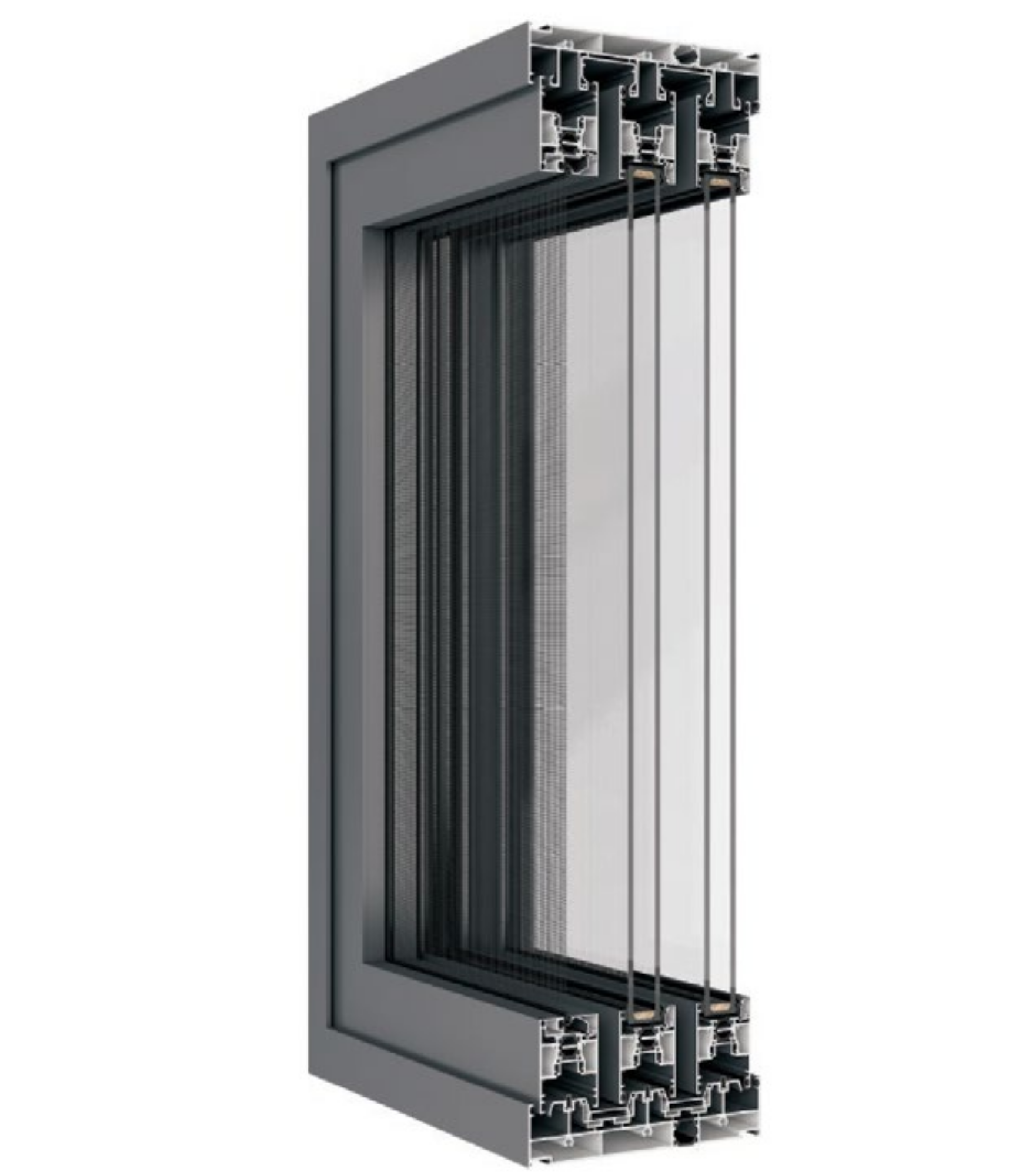

• Track configurations: 2-track, 3-track, or 4-track, matched to your opening size and how much glass you want stacked.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, or Black Tint, each with different heat, impact, and privacy characteristics.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen or a traditional sliding screen, depending on how often you want the opening fully clear.
• Performance standards: Thermally broken frame construction, NFRC-rated energy performance, and installation per AAMA 2400/2410 with AAMA 812 low-expansion foam at all perimeter joints.

Performance Features

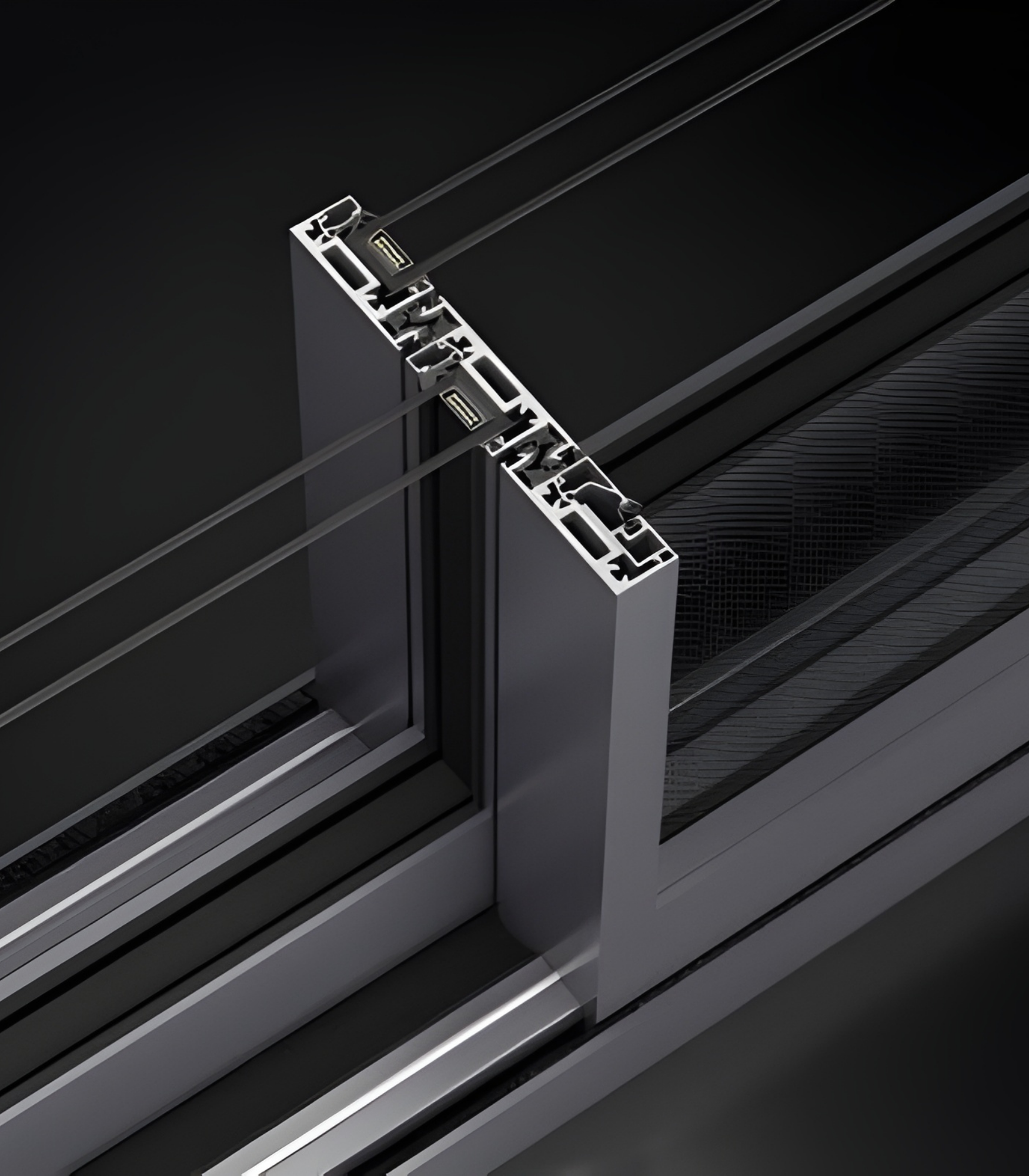

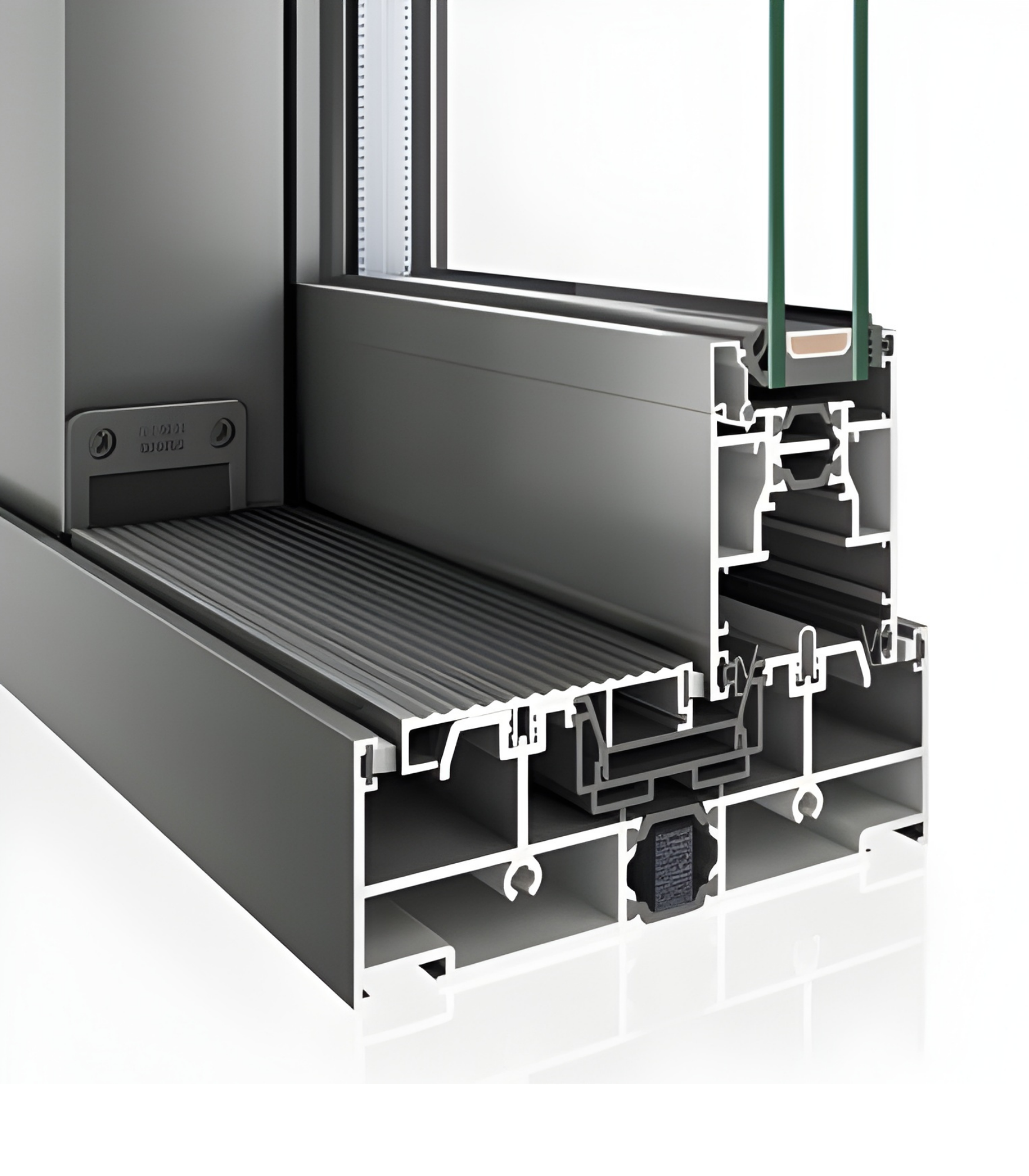

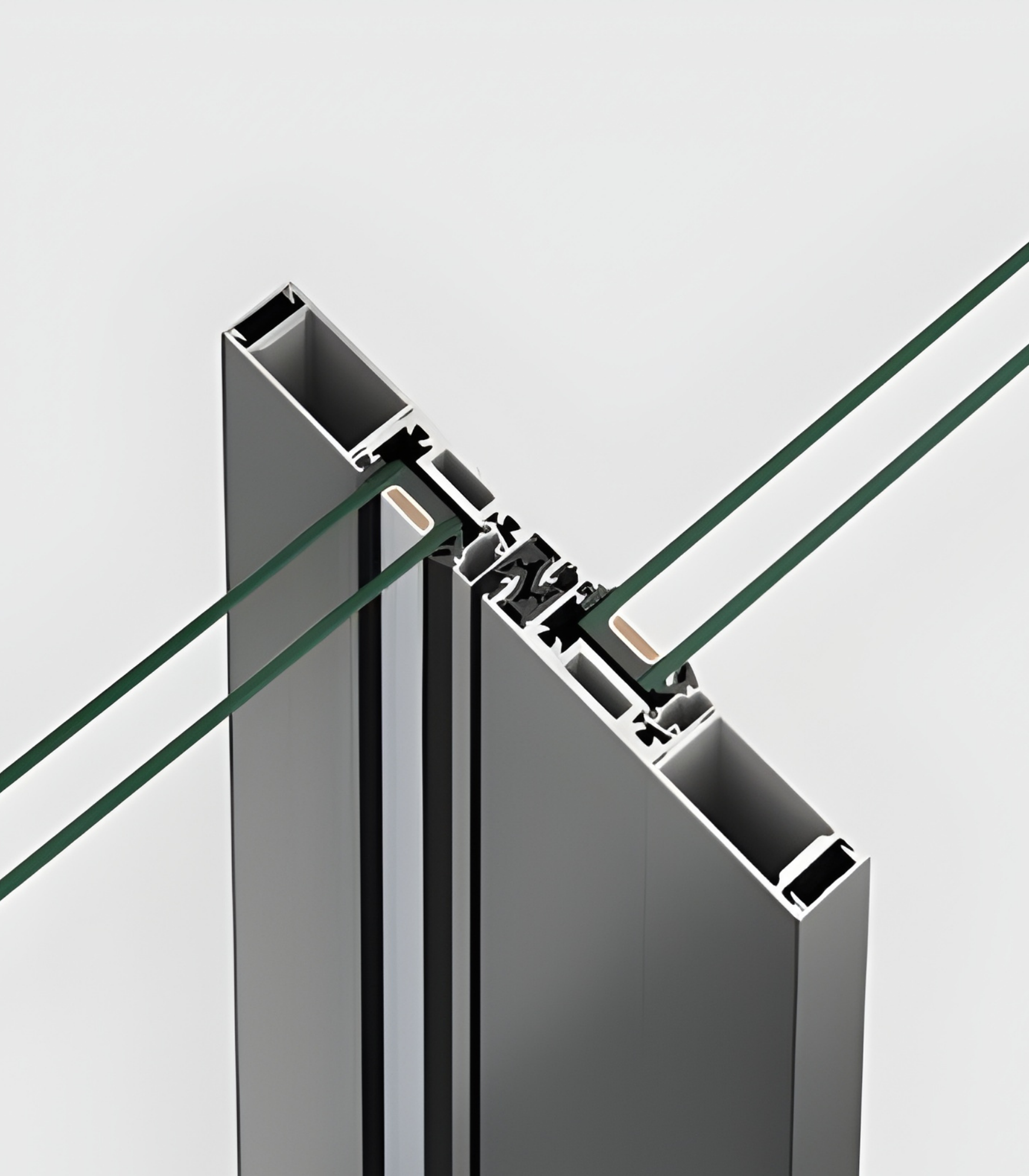

Thermal Efficiency – The VLX 150 uses thermal break technology that separates the interior and exterior aluminum faces, reducing heat transfer through the frame. In Tampa’s climate, that means a door that doesn’t radiate afternoon heat into your living room. NFRC-rated performance numbers are available for specific glass packages, and Low-E glass options further cut solar gain.

Acoustic Performance – Laminated glass is the quiet option. It damps sound transmission noticeably compared to standard tempered glass. If you live near Bayshore Boulevard traffic, the airport flight path, or a busy stretch of Dale Mabry, it’s worth considering. The heavier frame and tight perimeter seal also reduce the rattles and whistles that cheaper sliders develop over time.

Airtightness & Weather Seal – Every VLX 150 we install in Tampa gets AAMA 812 low-expansion foam sealant on all perimeter joints. That’s the standard that prevents air leaks around the frame, not just a bead of caulk that cracks in a year. The result is a door that doesn’t leak conditioned air in August when your AC is running hard.

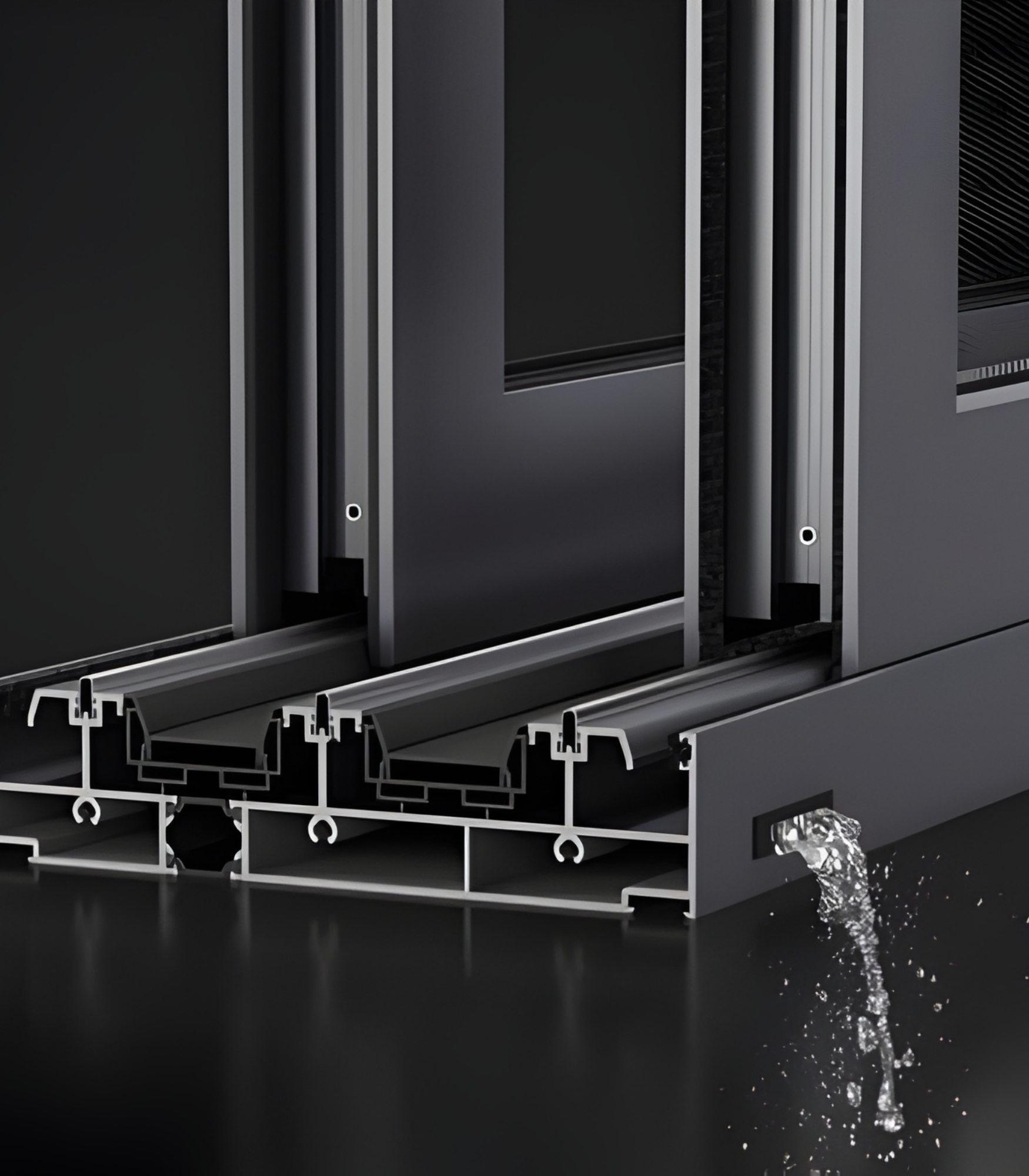

Waterproofing – Tampa gets roughly 50 inches of rain a year, often in short, violent bursts. The VLX 150’s track system is designed to channel water out and away from the interior, and our install crew verifies that drainage path before sealing anything. We also run a water test after installation to confirm the door sheds water the way it should.

Wind Resistance – This door is wind-load rated for local climate requirements, and the laminated glass option gives you an impact-resistant assembly. For homes in Tampa’s evacuation zones or anywhere that sees strong summer squalls, that’s a meaningful difference. The 0.118-inch wall thickness and stainless hardware are doing real structural work when the wind pushes against a 20-foot span of glass.

Security & Hardware – The VLX 150 runs on stainless steel rollers and a reinforced track, and the multi-point locking hardware engages solidly. Sliding doors are a common entry point for break-ins; this one doesn’t have the flex-and-lift vulnerability you see in flimsier aluminum sliders. Laminated glass adds another layer of intrusion resistance.

Color & Glass Options

The VLX 150 comes in six finishes, and the right one depends on your home’s architecture. Premium Black is the default choice for modern and contemporary homes in Tampa; it frames the glass sharply and hides frame bulk. Pure White works well on coastal and traditional homes, and it’s forgiving in direct sun. Anodized Silver is the minimalist pick, a clean metallic finish that reads as architectural. Bronze is a dark warm tone that complements brick or stucco exteriors. Champagne is lighter and warmer, a good middle ground for Mediterranean-style homes. Teak Wood is a wood-look finish, for homeowners who want a timber aesthetic without losing aluminum’s durability in Florida humidity.

On the glass side, Clear maximizes visible light and is the most affordable. Low-E adds a coating that reflects infrared heat; in Tampa, it cuts cooling costs and protects furniture from UV fading. Tempered is safety glass, required by code in many door applications. Laminated is your impact-rated option, and it also reduces sound. Gray Tint and Black Tint cut glare and solar gain, popular for west-facing walls that bake in the afternoon.

Installation by Meridian Windows and Doors Tampa in Tampa

Here’s the uncomfortable truth about sliding doors: the best door on the market can fail within two years if it’s installed poorly. A frame that’s out of level by a quarter inch will make panels bind. A perimeter joint sealed with basic caulk will leak. A track that isn’t shimmed and anchored correctly will sag. And when that happens, the manufacturer warranty won’t save you because improper installation voids it.

Meridian Windows and Doors Tampa installs the VLX 150 the way the manufacturer requires: per AAMA 2400/2410 installation standards. Every project starts with a pre-install inspection of the rough opening. We check the opening dimensions against the factory order, verify the sill condition, and confirm the substrate can anchor the frame properly. Then we set the frame level, plumb, and square, shimming as needed before anchoring. The perimeter gets AAMA 812 low-expansion foam sealant on every joint, interior and exterior, which stops air and water movement. We run a water test before final trim, and we don’t wrap the job until that test passes.

Tampa-specific conditions matter here. Our humidity means moisture trapped in a wall cavity is a mold risk. Our storms mean wind-driven rain finds any gap in the perimeter seal. And our building codes require certain window and door products to meet wind-load requirements, especially for large openings. We’ve installed sliders in everything from 1950s ranch houses in Seminole Heights to new construction in Westchase, and the process works the same: measure carefully, set it right, seal it completely, and test it before we leave.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Tampa

If you’re pricing a wide-opening slider for a Tampa home, don’t guess at numbers. We’ll measure your opening, confirm your glass and finish options, and give you a written line-item quote that won’t surprise you later. The estimate is free. The conversation is worth ten minutes. Call Meridian Windows and Doors Tampa at (850) 821-3041 and we’ll schedule your on-site measurement this week.

Written by the team at Meridian Windows and Doors Tampa, serving Tampa, FL and surrounding communities since our founding. As an authorized ViewLux installation partner, we stand behind every VLX 150 we install.
